Description
Features
- Bolt-on fitment compatible with Ford F-150 2021+
- Ultra-high intensity with custom-engineered TIR optics
- Selectable backlight color with eight color options
- Torture-tested heavy-duty construction
- Control through factory aux switch bank using the included harness
- Assembled in USA
Overview

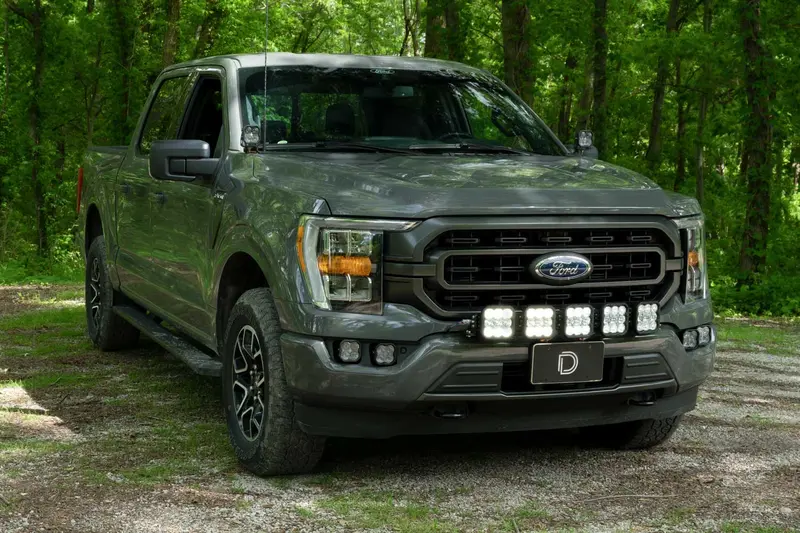

Perfect Fitment. The Grille CrossLink Lightbar Kit compatible with Ford F-150 2021+ from Diode Dynamics allows you to mount five linked SS5 LED pods on the factory grille. These application-specific brackets were CAD-designed to bolt into place using factory mounting points on the grille. No cutting or drilling required!
Designed for Performance. Featuring the highest output intensity of any 5-inch LED pod on the market these lamps have been designed for maximum functionality with patented technology and custom-engineered TIR optics all in a durable package.
Selectable Backlight. The Stage Series 5inch LED Pods included in the White kit feature a selectable backlight with eight different color options perfect for an extra styling accent or for more visibility when you’re not using the main beam. Selecting your backlight color is easy – simply alternate the power on and off. There’s no complicated programming with a controller! The SS5’s backlight fully illuminates the TIR optic providing unique accent lighting that you won’t find on other LED pods. Note: Due to the yellow lens the Yellow kit is only available with an Amber backlight color.
CrossLink. Our patent-pending CrossLink technology allows you to link up to eight SS5 pods together to create your own lightbar. The single-piece CNC aluminum link provides extreme rigidity but is fully adjustable. This kit was designed for a curved configuration.
Included in the box:
- Two (2) Application-specific heavy-duty steel brackets
- Five (5) Stage Series 5″ LED Pods
- Four (4) CrossLinks with hardware
- One (1) CrossLink endmount kit
- Four (4) CrossLink splitter harnesses
- One (1) Heavy duty single-output harness
- Installation Guide
Resources
Installation Instructions
Specifications:
| beam_angle | Combo (Driving and Flood) |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/diode%20ASAP.png |
| Connector | Deutsch DT Input |
| height | 12.0 |
| last_update | 2022-11-15 19:28:19 |
| last_update | 2023-06-21 12:43:31 |
| length | 18.0 |
| lumens | 3 700 Lumens |
| LUX | 71 200 cd |
| material_l | Polycarbonate |
| material_l | Polycarbonate Lens, Aluminum Casting, Rubber Gasket |
| part_number_type | Offroad |
| sold_as | Kit |
| Universal | No |
| vehicle_type | Truck/SUV |
| volts | 9-16V |
| Warranty | 8 year warranty |
| waterproof_rating | IP69K Waterproof High Pressure |
| watt | Main Beam: 40 Backlight: 3.07 |
| weight | 21.9 |
| width | 15.0 |
